2.4G fogaanta
muuqaal
Kontoroolka fogaanta 2.4G waa kantaroolka fogaanta ee inta jeer ee raadiyaha aad ugu badan suuqa.
2.4GHz waa soo noqnoqda dadweynaha, qiyaastii 2400MHz.
Maaddaama xajinta xadhkaha soo noqnoqda ee 2.4GHz ay aad uga balaadhan tahay 72MHz, 40MHz, 35Mhz kantaroolayaasha fogaanta soo noqnoqda ee soo noqnoqda.Hirarka korantada ee GHz wuxuu leeyahay khad toosan, anteeno gaaban, iyo fududahay in la isticmaalo, sidaas darteed waxaa jecel qaar ka mid ah dadka xiiseeya diyaaradaha.Xakamaynta fog ee 2.4GHz waxay leedahay dhibco soo noqnoqda oo badan oo la isticmaali karo;Intaa waxaa dheer, hirarka raadiyaha ee 2.4GHz wuxuu leeyahay awood kala duwanaansho xoog leh, mana fududa in la lumiyo xakamaynta marka ay jiraan caqabado.
Kontoroolka fogaanta 2.4G waxaa inta badan loo adeegsadaa goobta isgaarsiinta.Waa liidasho galitaanka caqabadaha ~~Sababtoo ah waa mowjad gaaban.

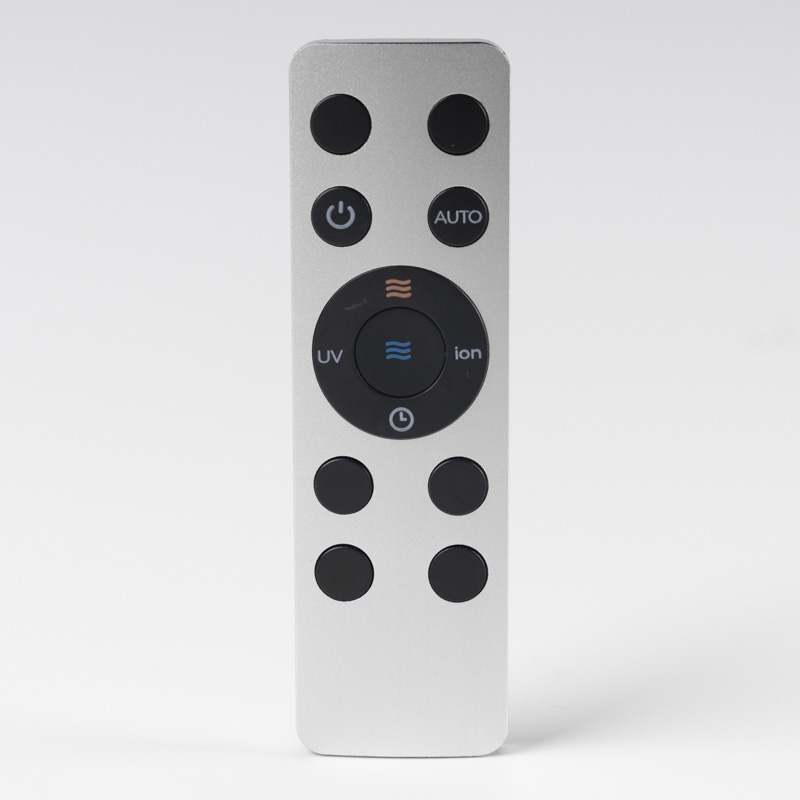

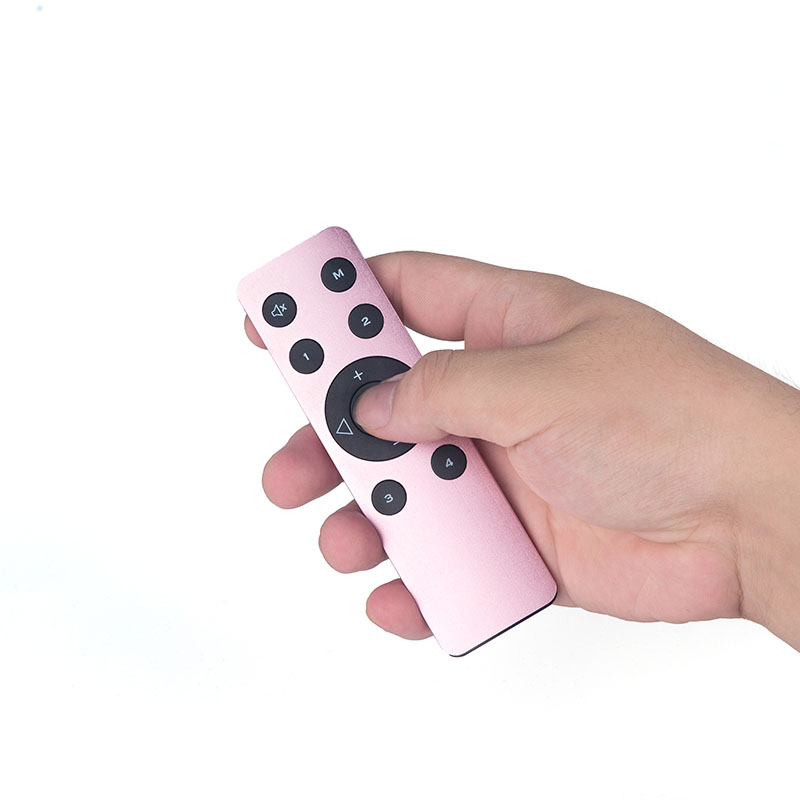

DT-013AL waxay isticmaashaa qolofka aluminiumka ah iyo chip-tayada sare leh si ay u dhamaystirto shaqada gudbinta calaamadaha 2.4G.
| QEEXIDDA Alaabada | ||
| Nambarka Model | DT-013AL | |
| Alaabta | Kontoroolka fog ee 9-muhiimka ah ee RF oo leh soo-dhoweeyaha USB HID | |
| RF | 2.4 GHz band ISM (2.4 GHz ISMband soo noqnoqda) | |

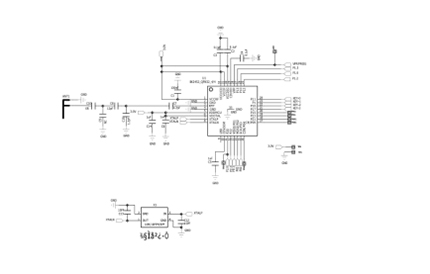

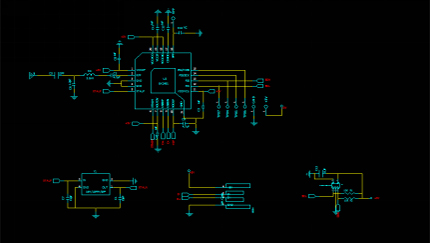

| PCB | EP0050406 jaantuska jaantuska：BK2452_MODULE_V2 | |
| Gudbinta | > 10 m | |
| Cabbirka | 120 x36 x 9 mm | |
| Battery | CR2032 | |
| Lacagta | <10mA | |
| Lamaanaynta | Isku-xidhka: Sida caadiga ah, kontoroolka fog wuxuu u baahan yahay in horay loogu sii lammaaniyo soo-qabaha USB HID.Riix labadan fure isku mar 3 ilbiriqsi, koontaroolka fog wuxuu galaa xaalada lammaane. | |
| HID | Sida caadiga ah, kontoroolka fogku waa inuu ka soo muuqdaa Android USB martigeliyaha sida magaca aaladda kiiboodhka | |
| Aqoonsiga isticmaalka HID | Marka badhanka laga hago fogaanta la riixo, gudbinta aqoonsiga isticmaalka HID waa inuu raacaa shaxda qeexan ee bogga 2. | |
| Naqshadeynta
| Dhammaan badhamada waa inay ahaadaan madow leh shaashad xariir cad. | |
| Badhamada waa in lagu calaamadiyaa si waafaqsan sawirada xaashida qeexitaanka. | ||
| Logo: Kontoroolka fog waa inuu ku jiraa LOGO sida ku cad sawirada xaashida qeexitaanka. | ||
| Marka loo eego sawirka, midabka kontoroolka fogaanta waa midabka aasaasiga ah ee aluminium alloy. | ||
| Kaydinta Alaabta & Deegaanka Hawlgalka-20℃～60℃ |
| |
| Heerkulka deegaanka | ||
| Qoyaanka 45%～75% RH | 86～106Kpa | |
| Cadaadiska hawada | Iftiinka dabiiciga ah ama iftiinka fluorescent 200± 50LX | |
| Iftiinka deegaanka (isticmaalka) | ||
| Qalabka Alaabta &Qaabka MidabkaAluminium |
| |
| walxaha qolofka | ||
| Walxaha caaga ahABS/---■cad-madow | ABS | |
| Walxaha badhamada | FR4 | |
| Qalabka PCB | Gudbinta:BK2452Qaadi: BK2451 | |
| Chip | 2.4G | |
| Xakamaynta fog ee gudbiyaha | Bogga xiga | |
| Miiska koodhka gudbiyaha ee kontoroolka fog | Bogga xiga | |
| Naqshadaynta muuqaalka alaabta | 9.8*35.8*120.6 | |
| Cabbirka Alaabta | 39g | |
| Miisaanka alaabta | Button batteriga | |
| Battery | Badhanka unugga CR2032 | |
| Tilmaanta batteriga | ||
| Heerka Imtixaanka(Heerkulka = 25 ℃)(Qalabka Alaabta)DC 3V |
| |
| danab shaqeeya oo la qiimeeyay | ||
| Kala duwanaanshaha korantada shaqaynaysaDC 2.4V-5.0V | 15mA | |
| Kala duwanaanshaha hadda shaqeeya | ≤5uA | |
| Hadda taagan | 30mAV/wakhti | |
| Awood gudbin | ≥15M (jihada dhidibka; aan cidhiidhi ahayn, aaladda heerka caadiga ah) | |
| Fogaanta bilawga | N/A | |
| Xagasha jihaynta | ≥8M (2.5V jihada dhidibka; wax xannibaad ah ma leh) | |
| Fogaanta gudbinta korantada hooseysa | ≤2mm | |
| Dhererka bilaashka ah ee furayaasha | 180(±20)g | |
| Xoog badhanka | ≥10 Milyan jeer | |
| Button load nolosha | 76cm(Dabaqa adag)/ 100cm (Dhulka alwaax) | |
| Tijaabada dhibicda bilaashka ah | 6 次Hal mar dhinac walba) | |
| Waqtiyada dayrta ee bilaashka ah | Jihada saddex-geesoodka ah;ballaciisu yahay 1.5mm;500-3300 jeer/sek | |
| Tijaabada gariirka (30 daqiiqo) | 60℃(72h) | |
| Tijaabada kaydinta heerkulka sare | -20 ℃ (72saac) | |
| Tijaabada kaydinta heerkulka hooseeya | 40℃ qoyaan qaraabo ah 90% | |
| Baaritaanka qoyaanka joogtada ah | ||
| (XIDHIIDHKA) |
| |
| Xirxirida: bacda PE (PE-LD) | 380PCS/CTN | |
| kartoonada | ||

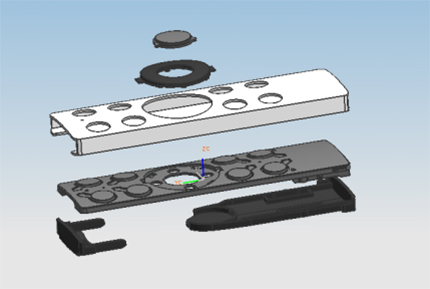

Naqshad:

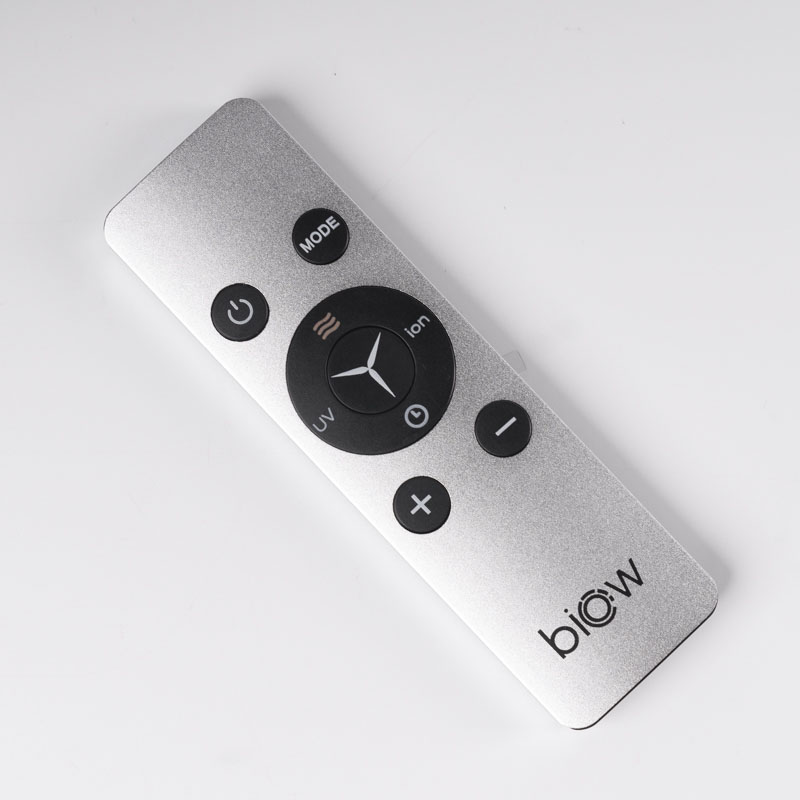

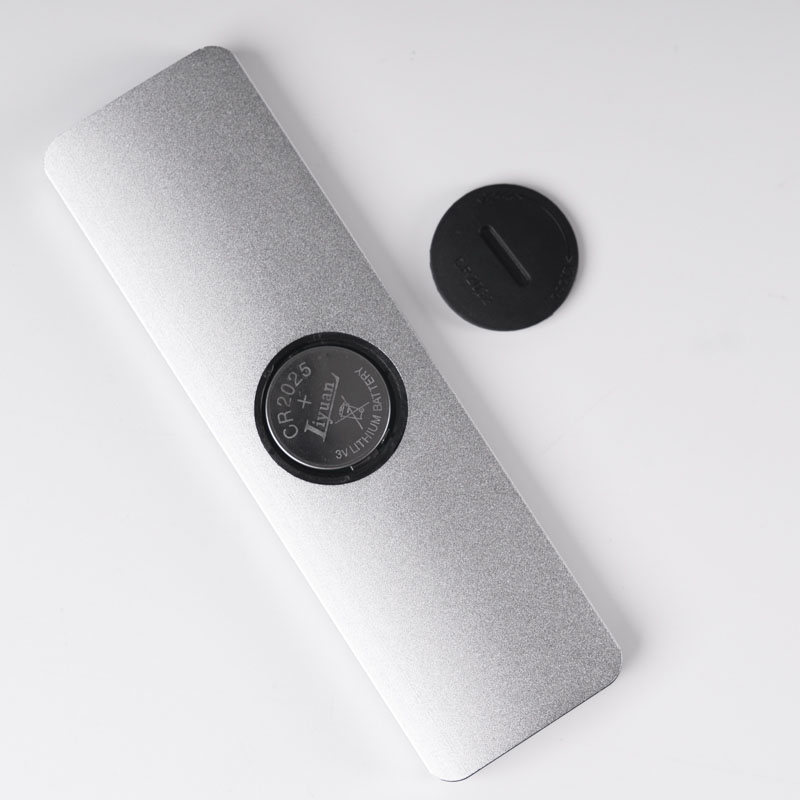

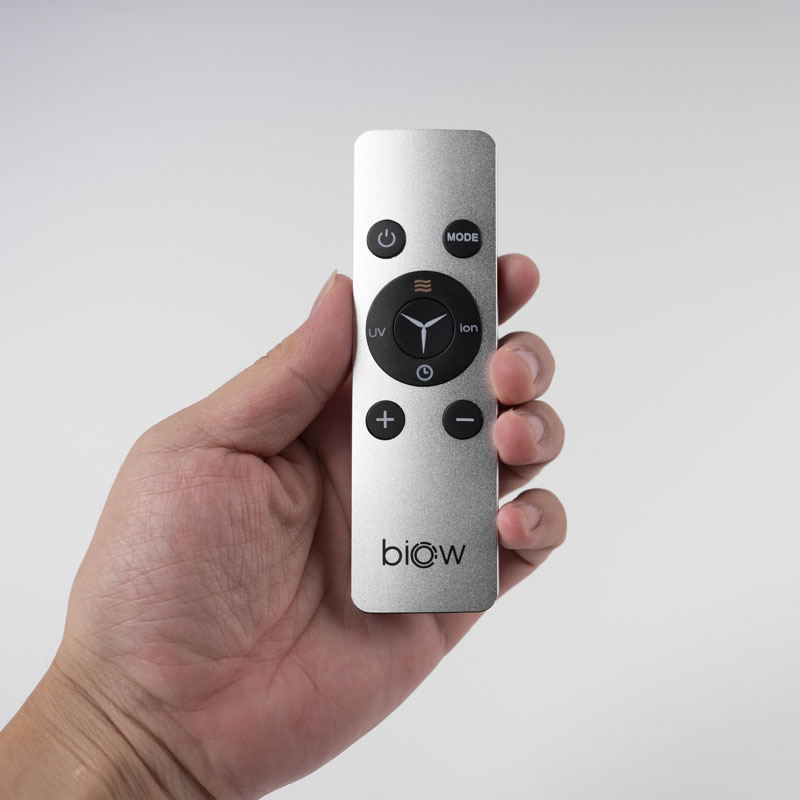

D009

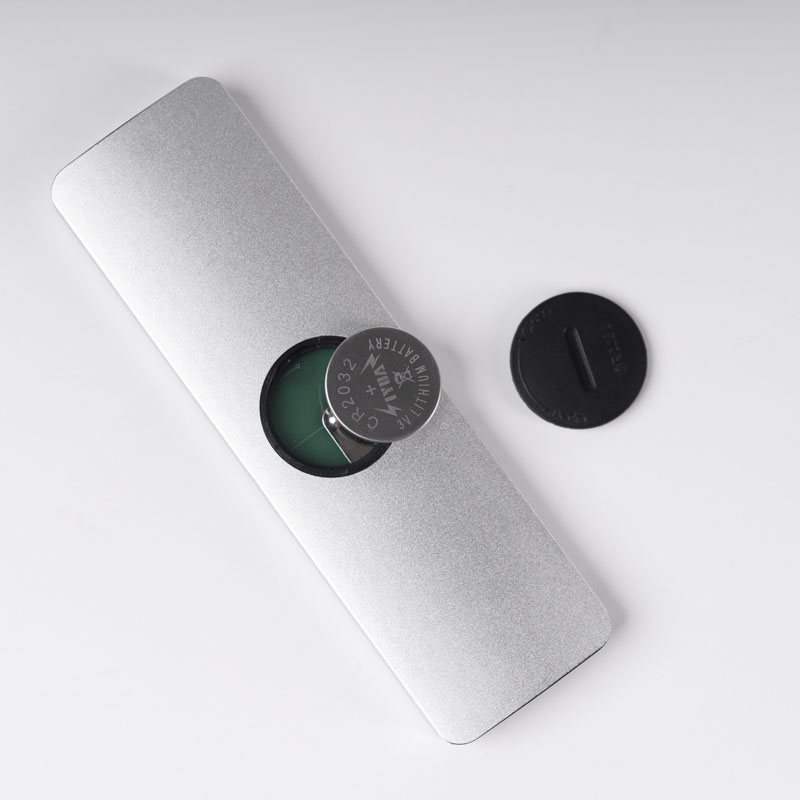

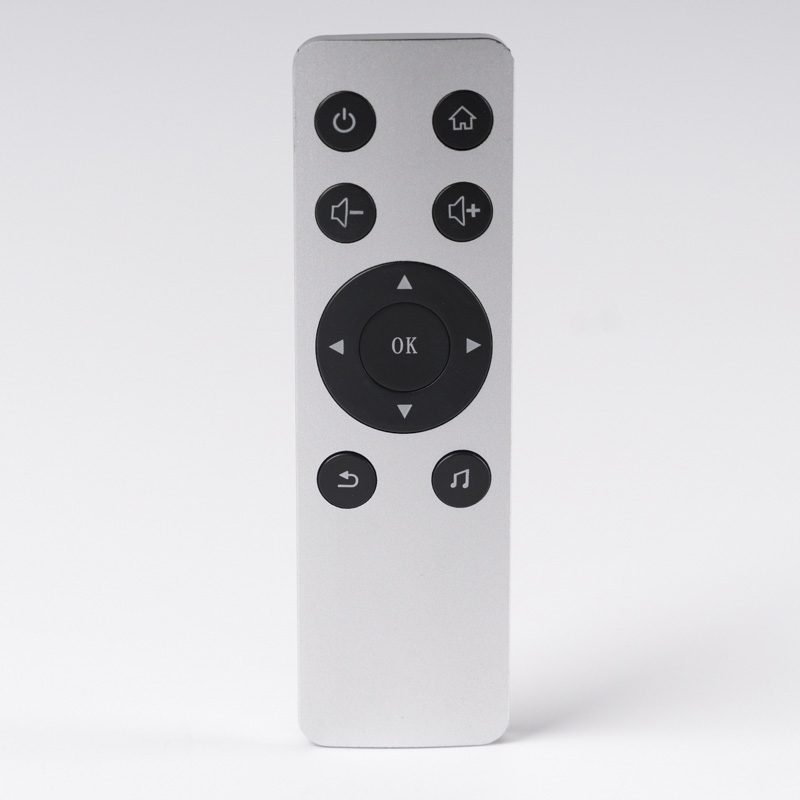

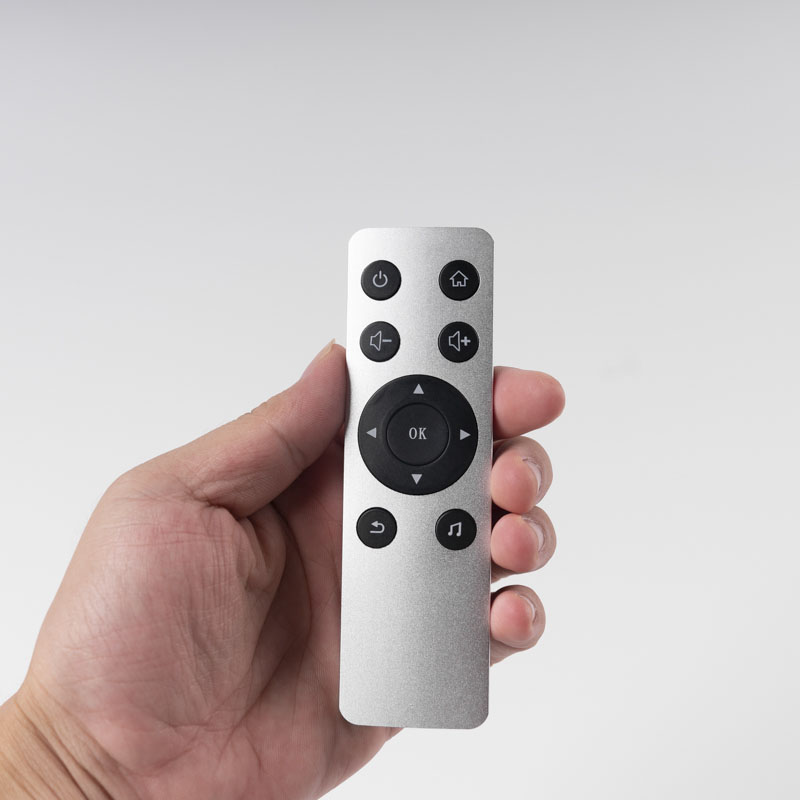

D011

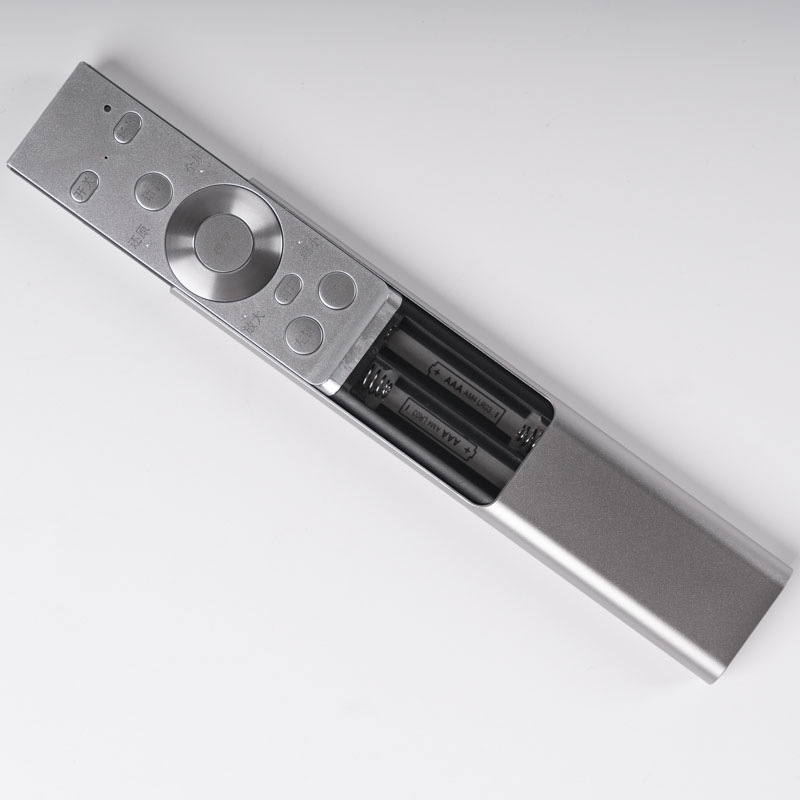

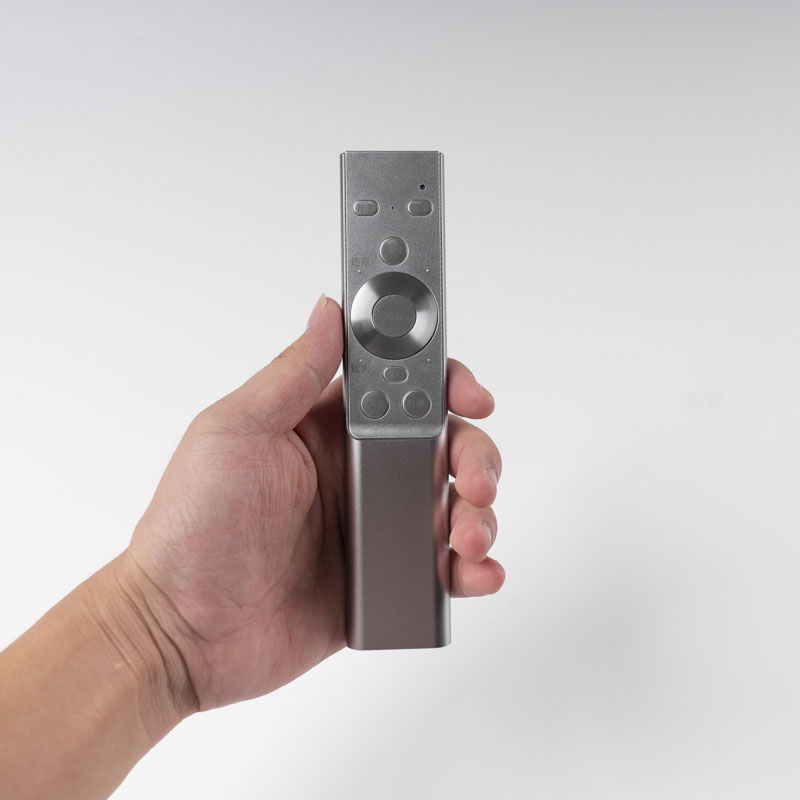

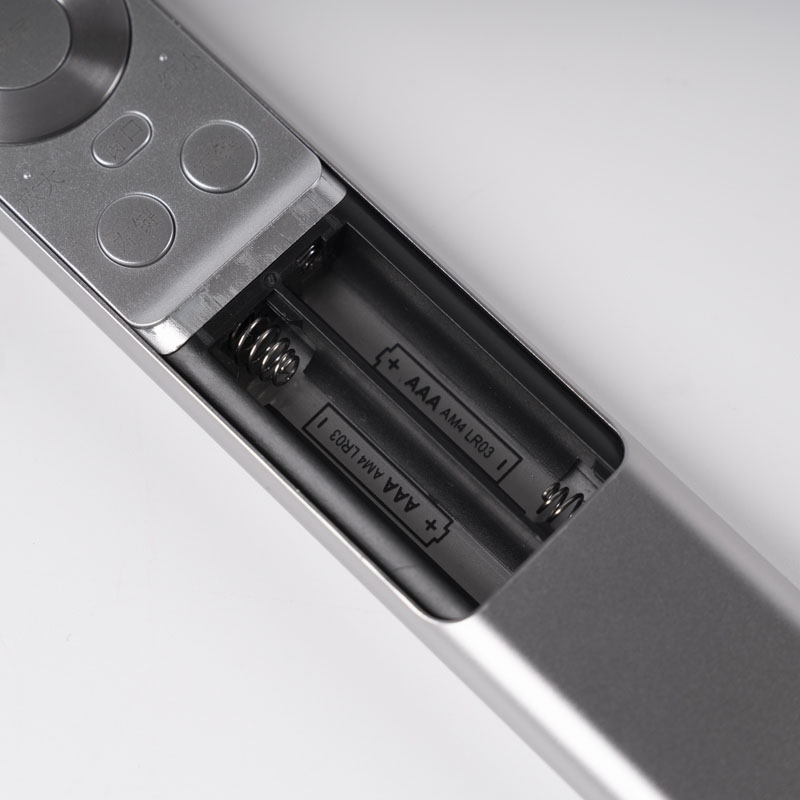

D015

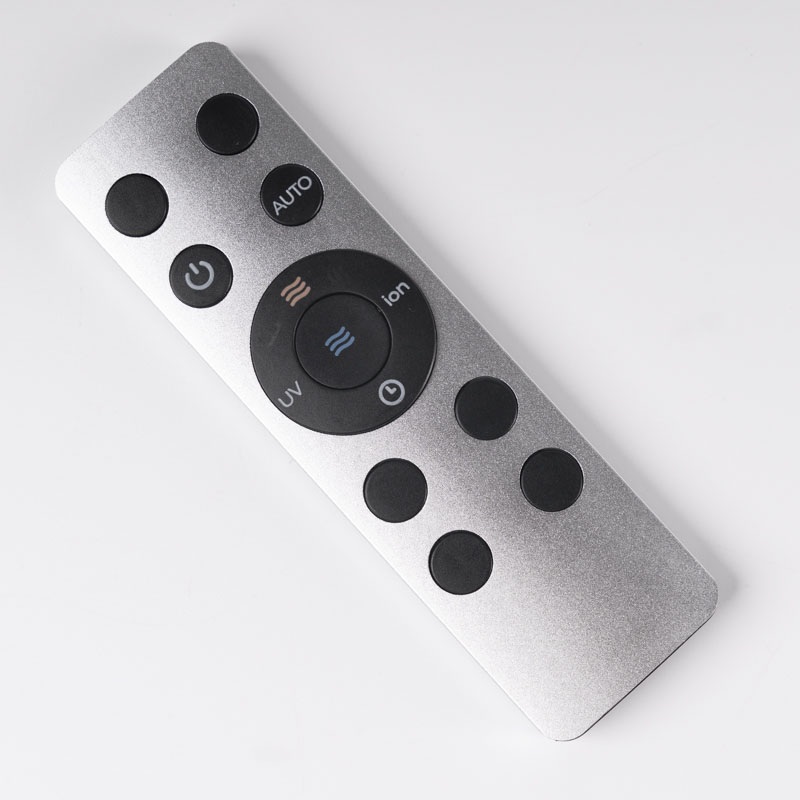

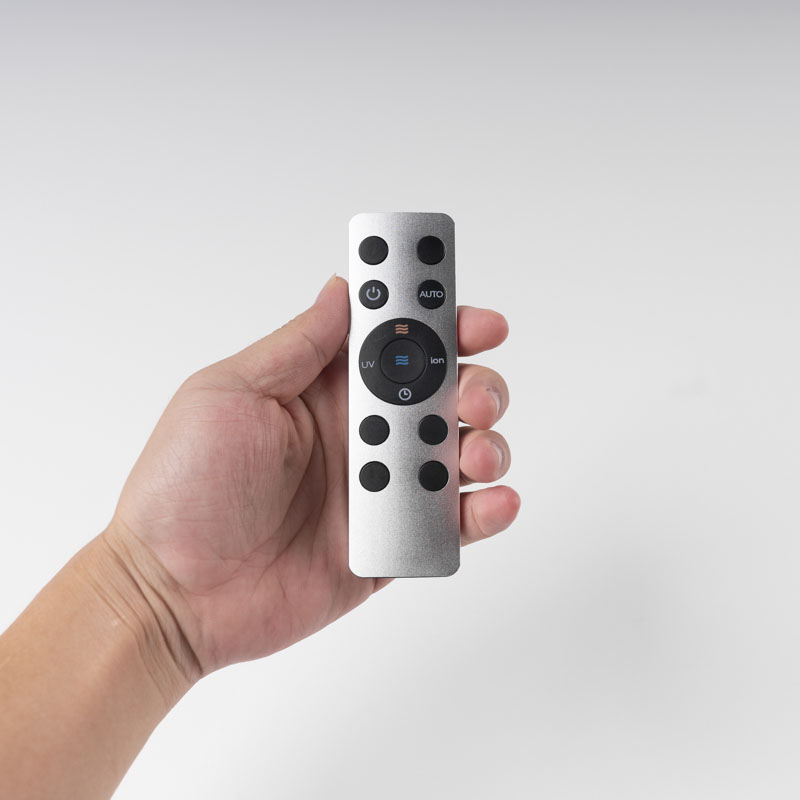

DT013AL

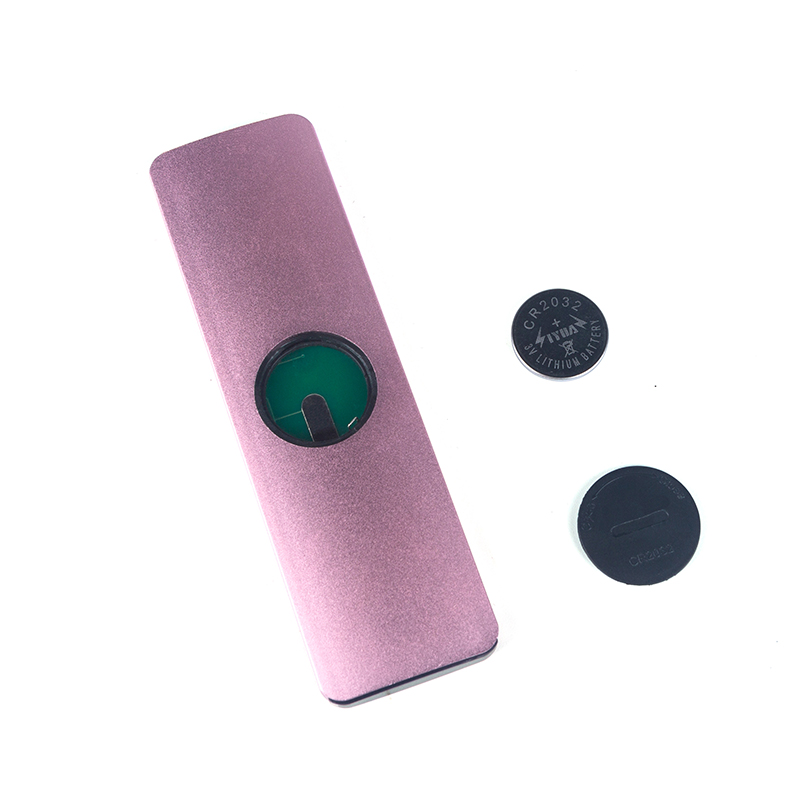

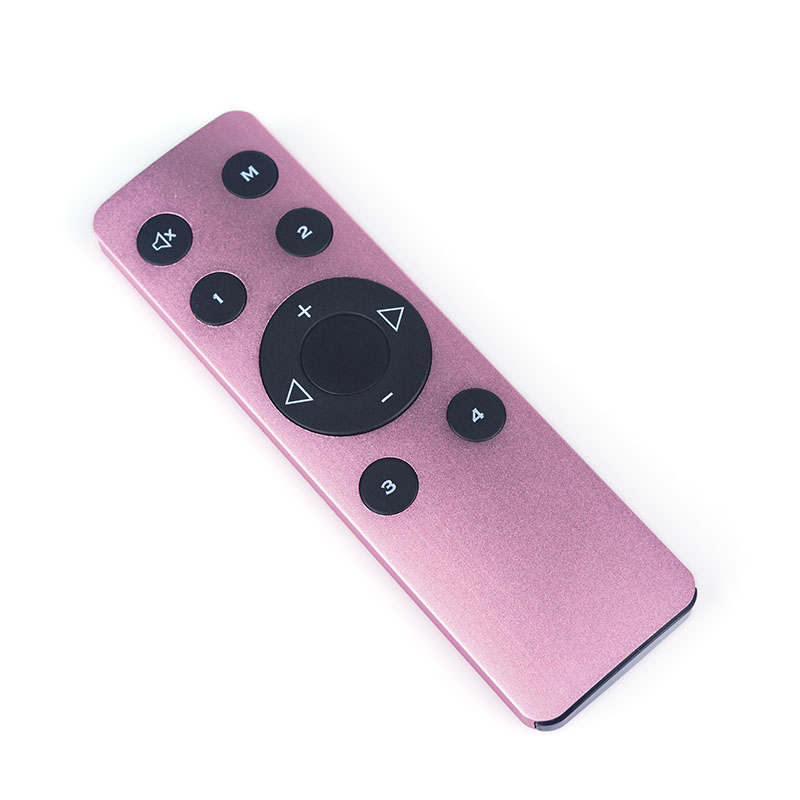

DT013
